Cybernetics Storage and Backup Solutions

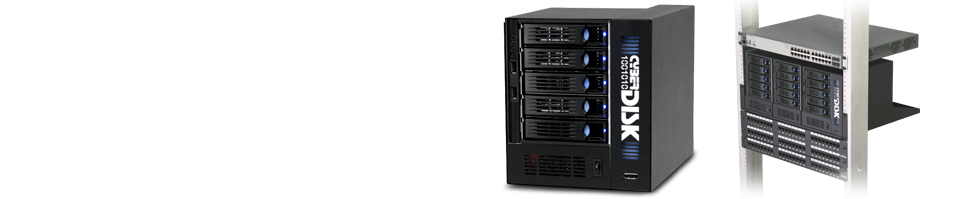

CyberDisk

Scalable – 60,000 IOPS – 200 MB/s

Building a powerful, modular, easily adaptable data center just got affordable

iSCSI Disk Based Storage

CyberDisk utilizes Storage Area Network (SAN) storage, so you can consolidate data storage for all your workstations and servers. Instead of individual hard drives that are limited, slow, and subject to failure, just create virtual disks on CyberDisk. Virtual disk storage is easier to manage, expandable, and will save you time and reduce costs. Not only is Virtual Disk Storage more reliable, our advanced caching technology provides excellent performance.

All you need is standard Ethernet cables, and you can connect as many devices to CyberDisk Virtual Disk storage as you like through a switch. Need more disk space? Simply change the space allocation right on CyberDisk, or add Expansion Modules if needed. An easy and intuitive management interface makes management as simple as point and click.

Live Storage
  • iSCSI SAN – The most efficient kind of storage – block level SAN network storage.
  • Fast transfer rates – 200 MB/s throughput.
  • Exceptional performance – 60,000 IOPS.
  • Scalable – Supports up to 3 modules in a single SAN for 60 TB capacity.
  • Dynamic LUN Provisioning – Add capacity to any virtual disk, server, or application on the fly.
  • Your choice of RAID 0, 5 or 6.
  • Connectivity – Two GbE ports.
  • Compatible – Windows, Linux, Unix, Netware Applications, Virtual Machines, OS X, Hyper V, Virtual Iron, VMware, XEN, SQL, Exchange, Oracle and more.

Layered Data Protection
  • Snapshots Backup – Mountable points for recovery or rollback.
  • Disk Backup – Copy disk volumes to portable USB and eSATA hard disk.
  • WAN Replication (Option) – Automated, deduplicated and encrypted remote disaster recovery backup.
  • IP Constraints to ensure authorized access only.
  • Error notifications to email or mobile device via SNMP.
  • Visual status of temperature, fan speed, disks and connections.
Citrix and VMware Ready
Use Click to Consult and we'll call you.
Specifications
Disk Drive Bays 5
Scalable One controller unit plus up to two expansion units
Transfer Rate 200 MB/s
IOPS 60,000
Replication Optional
RAID Levels 0, 5, 6
Network Interface Two 1 GbE ports
Interface One eSATA port, two USB ports, two expansion ports
Physical Dimensions 8”H x 7”W x 9.5”D
Please allow 3” for cable clearance
Weight 18.55 lbs
Warranty Two years
Operating System
Compatibility
AIX 5.3 and higher
HPUX 11.11 and higher
Linux
Netware 6.5 SP6 +
MAC OS X (with Initiator)
Solaris 10.X and higher
Windows 7, 2000, 2003, XP and higher
Special Applications
Compatibility
VMware ESX Server 3.5, 4.x, 5.x
vSphere 4
Xen
HyperV
SQL Database
Oracle Database
Microsoft Exchange
iSCSI Initiator
Compatibility
Microsoft iSCSI Software Initiator
Linux Open-iSCSI Initiator
Novell iSCSI Initiator for Netware
Storage Area Network (SAN) Disk Storage
