Cybernetics Storage and Backup Solutions

CyberDisk

Scalable – 60,000 IOPS – 200 MB/s

Up to 60 TB of virtual disk storage

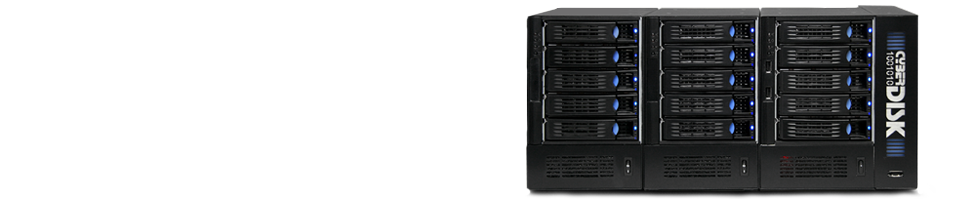

iSCSI Disk Based Storage

Finally, a reliable, affordable and modular network storage solution that connects to any Ethernet network and provides consolidated network storage resources for modern operating systems and applications. CyberDisk delivers instantaneous and automatic data protection and is packed with powerful features that maximize utilization through storage resource consolidation.

Your data is safe and accessible, with layers of protection against all types of threats to data, including snapshot backup, LUN cloning to portable disk backup, IP Constraints, and more, all through an intuitive iSCSI SAN Management Interface.

Live Storage
  • iSCSI SAN – The most efficient kind of storage – block level SAN network storage.
  • Fast transfer rates – 200 MB/s throughput.
  • Exceptional performance – 60,000 IOPS.
  • Scalable – Supports up to 3 modules in a single SAN for 60 TB capacity.
  • Dynamic LUN Provisioning – Add capacity to any virtual disk, server, or application on the fly.
  • Your choice of RAID 0, 5 or 6.
  • Connectivity – Two GbE ports.
  • Compatible – Windows, Linux, Unix, Netware Applications, Virtual Machines, OS X, Hyper V, Virtual Iron, VMware, XEN, SQL, Exchange, Oracle and more.

Layered Data Protection
  • Snapshots Backup – Mountable points for recovery or rollback.
  • Disk Backup – Copy disk volumes to portable USB and eSATA hard disk.
  • WAN Replication (Option) – Automated, deduplicated and encrypted remote disaster recovery backup.
  • IP Constraints to ensure authorized access only.
  • Error notifications to email or mobile device via SNMP.
  • Visual status of temperature, fan speed, disks and connections.
Citrix and VMware Ready
Use Click to Consult and we'll call you.
Specifications
Disk Drive Bays 15
Scalable One controller unit plus up to two expansion units
Transfer Rate 200 MB/s
IOPS 60,000
Replication Optional
RAID Levels 0, 5, 6
Network Interface Two 1 GbE ports
Interface One eSATA port, two USB ports, two expansion ports
Power Consumption 45.9 watts idle, 80.4 watts active
BTU Output 156.7 BTU idle, 274.6 BTU active
Physical Dimensions 8”H x 17”W x 9.5”D
Please allow 3” for cable clearance
Weight 48.55 lbs
Warranty Two years
Operating System
Compatibility
AIX 5.3 and higher
HPUX 11.11 and higher
Linux
Netware 6.5 SP6 +
MAC OS X (with Initiator)
Solaris 10.X and higher
Windows 7, 2000, 2003, XP and higher
Special Applications
Compatibility
VMware ESX Server 3.5, 4.x, 5.x
vSphere 4
Xen
HyperV
SQL Database
Oracle Database
Microsoft Exchange
iSCSI Initiator
Compatibility
Microsoft iSCSI Software Initiator
Linux Open-iSCSI Initiator
Novell iSCSI Initiator for Netware
