Virtual Tape Library

miSAN® V Series

Faster Backups With Disk And Tape

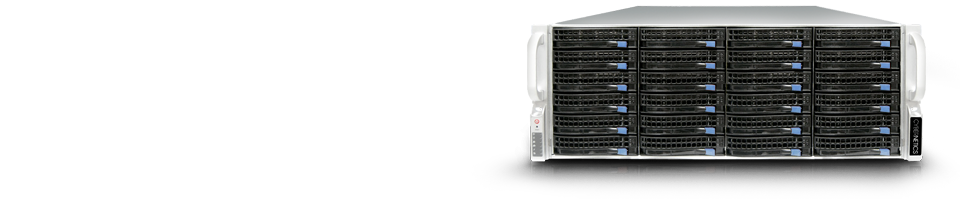

iSCSI Disk Based Storage

The miSAN® V Series is an iSCSI SAN virtual tape library backup solution with a feature rich menu for virtualizing disk to appear as tape backup devices. The miSAN® V Series runs on Cybernetics' powerful HSTC engine, capitalizing on the best features of both disk and tape. A single miSAN® model can be configured as several independent tape backup devices, consolidating backup across a diverse enterprise to maximize resource utilization. Each disk based virtual tape device can operate independently of and concurrently with the others to complete network backup in record time. Restore from virtual tape begins in milliseconds for the fastest possible recovery. Serverless archival to tape media is handled in background mode with absolutely no impact on servers or network traffic, and the tapes are universally compatible for restore directly from removable tape or virtual tape.

Consolidates all your data backup cost effectively
  • Single control point for all backups across any mix of operating systems including IBM i, p and x Series, Windows, Linux, Unix, Netware, and MAC OS X.

Easily utilize your existing tape backup software
  • So there are no new procedures to learn or new software to purchase.

Cut your network backup time by 90% or more
  • With tape virtualization you can write backups to multiple virtual tapes drives concurrently, at disk-to-disk speeds of up to 500 MB/s.

Reduce backup space by 98% with deduplication
  • Optional deduplication will save time and space needed for backups, a 500 GB backup would need less than 10 GB of space. Includes site-to-site replication of deduplicated data.

Supports up to 6 simultaneous systems or partitions
  • Each writing in parallel to its own virtual tape drive/library, and unlimited virtual tapes with each one.


We Have The Answers To Your Questions
Let one of our experienced Technical Representatives save you time by answering all of the questions you have about the right solution for you company's demanding data backup and storage needs.
We'll show you how easy and affordable it is
Call Today! 757-833-9000
Specifications
Hot Swap Disk Drive Bays 24
Disk Drives SATA
Connectivity Standard: 4GbE and 4 Mini-SAS device/host ports
(+ iSCSI management port)
Optional: 4 additional GbE ports, or two 10-gigabit Ethernet (SFP+), or two or four SCSI
Scalable 1 controller unit plus 7 expansion units
Transfer Rate Up to 500 MB/s ( 1.8 TB/hr )
RAID Levels 0, 1, 10, 5, 6, 60, 50 + Hot Spare
Physical Dimensions 2U Rackmount
26.2" x 16.9" x 3.5"
Please allow 3" for cable clearance
Multi-Platform Support IBM System i, p, Legacy AS/400, Windows, Linux, Unix, HP-UX, Netware, MAC OS X
