Virtual Tape Backup

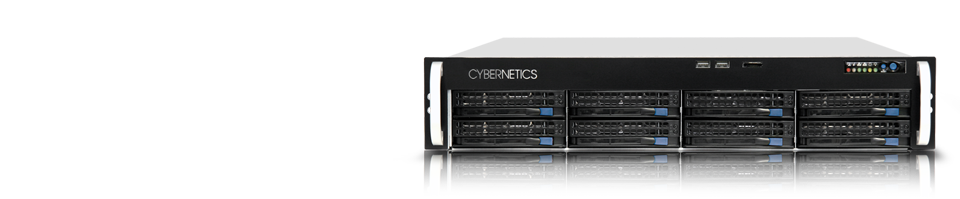

miSAN® V Series

Faster Backups With Disk And Tape

iSCSI Disk Based Storage

Our entry-level disk based Virtual Tape Library (VTL), the miSAN® V Series Virtual Tape Library disk to disk backup solution, combines the incredible speed of D2D backup with the security of removable tape backup archives. Using familiar Ethernet components, this D2D2T virtual tape library backup solution provides enterprise-wide access to 8 drive bays of SATA disk drives, for centralized backup and restore – at 500 MB/s – in just 2U. Once the virtual tape library is installed, you can automate virtual tape backups to run for days, weeks, or months without operator intervention; even run multiple disk based backup jobs concurrently to independent logical libraries within the VTL. Restore from disk is almost instantaneous. With serverless offload to removable tape, using an integrated or external tape drive, the V Series miSAN Virtual Tape Library delivers the best of disk and tape technologies in one solution for unbeatable performance and data protection.

Consolidates all your network backup cost effectively
  • Single control point for all backups across any mix of operating systems including IBM i, p and x Series, Windows, Linux, Unix, Netware, and MAC OS X.

Easily utilize your existing tape backup software
  • So there are no new procedures to learn or new backup software to purchase.

Cut your backup time by 90% or more
  • With disk based tape virtualization you can write backups to multiple virtual tapes drives concurrently, at disk to disk speeds of up to 500 MB/s.

Reduce backup space by 98% with deduplication
  • Optional deduplication will save time and space needed for backups, a 500 GB backup would need less than 10 GB of disk space. Includes site-to-site replication of deduplicated data.

Supports up to 6 simultaneous systems or partitions
  • Each writing in parallel to its own virtual tape drive/library, and unlimited virtual tapes with each one.


We Have The Answers To Your Questions
Let one of our experienced Technical Representatives save you time by answering all of the questions you have about the right solution for you company's demanding data backup and storage needs.
We'll show you how easy and affordable it is
Call Today! 757-833-9000
Specifications
Hot Swap Disk Drive Bays 8
Disk Drives SATA
Connectivity Standard: 4GbE and 4 Mini-SAS device/host ports
(+ iSCSI management port)
Optional: 4 additional GbE ports, or two 10-gigabit Ethernet (SFP+), or two or four SCSI
Scalable 1 controller unit plus 7 expansion units
Transfer Rate Up to 500 MB/s ( 1.8 TB/hr )
RAID Levels 0, 1, 10, 5, 6, 60, 50 + Hot Spare
Physical Dimensions 2U Rackmount
26.2" x 16.9" x 3.5"
Please allow 3" for cable clearance
Multi-platform Support IBM System i, p, Legacy AS/400, Windows, Linux, Unix, HP-UX, Netware, MAC OS X
