Cybernetics Storage and Backup Solutions

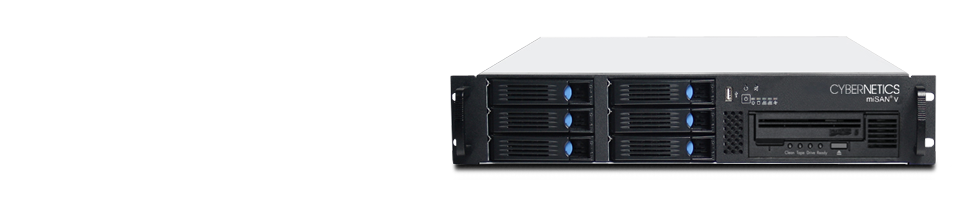

miSAN® V Series

Scalable Virtual Tape Library

Faster Backups With Disk And Tape

iSCSI Disk Based Storage

The miSAN V Series Virtual Tape Library with integrated LTO tape drive combines everything you need for D2D2T VTL backup in a compact 2U. Once installed on the network, use your existing backup software to backup data from heterogeneous workstations and servers to multiple virtual tapes at once – for the fastest possible backup. Data remains in disk cache for near-instantaneous restore. When it's time to offload data for long time archival storage, it's a serverless operation with no impact on your network – and with 2.5 TB on a single cartridge, it's incredibly cost-effective.

Consolidates all your backups cost effectively
  • Single control point for all backups across any mix of operating systems including IBM i, p and x Series, Windows, Linux, Unix, Netware, and MAC OS X.

Easily utilize your existing tape backup software
  • So there are no new procedures to learn or new software to purchase.

Cut your backup time by 90% or more
  • With tape virtualization you can write backups to multiple virtual tapes drives concurrently, at disk-to-disk speeds of up to 500 MB/s.

Reduce backup space by 95% with deduplication
  • Optional deduplication will save time and space needed for backups, a 500 GB backup would need less than 10 GB of space. Includes site-to-site replication of deduplicated data.

Supports up to 6 simultaneous systems or partitions
  • Each writing in parallel to its own virtual tape drive/library, and unlimited virtual tapes with each one.


We Have The Answers To Your Questions
Let one of our experienced Technical Representatives save you time by answering all of the questions you have about the right solution for you company's demanding data backup and storage needs.
We'll show you how easy and affordable it is
Call Today! 757-833-9000
Specifications
Hot Swap Disk Drive Bays 6
Disk Drives SATA
Connectivity Standard: 4GbE and 4 Mini-SAS device/host ports
(+ iSCSI management port)
Optional: 4 additional GbE ports, or two 10-gigabit Ethernet (SFP+), or two or four SCSI
Integrated Tape  LTO-6
Integrated Tape Capacity 2.5 TB native, up to 5 TB with compression
Scalable 1 controller unit plus 7 expansion units
Transfer Rate Up to 500 MB/s ( 1.8 TB/hr )
RAID Levels 0, 1, 10, 5, 6, 60, 50 + Hot Spare
Physical Dimensions 2U Rackmount
26.2" x 16.9" x 3.5"
Please allow 3" for cable clearance
Multi-Platform Support IBM System i, p, Legacy AS/400, Windows, Linux, Unix, HP-UX, Netware, MAC OS X
