Enormous Capacity & Highest Speed
in the Most Compact Solution.

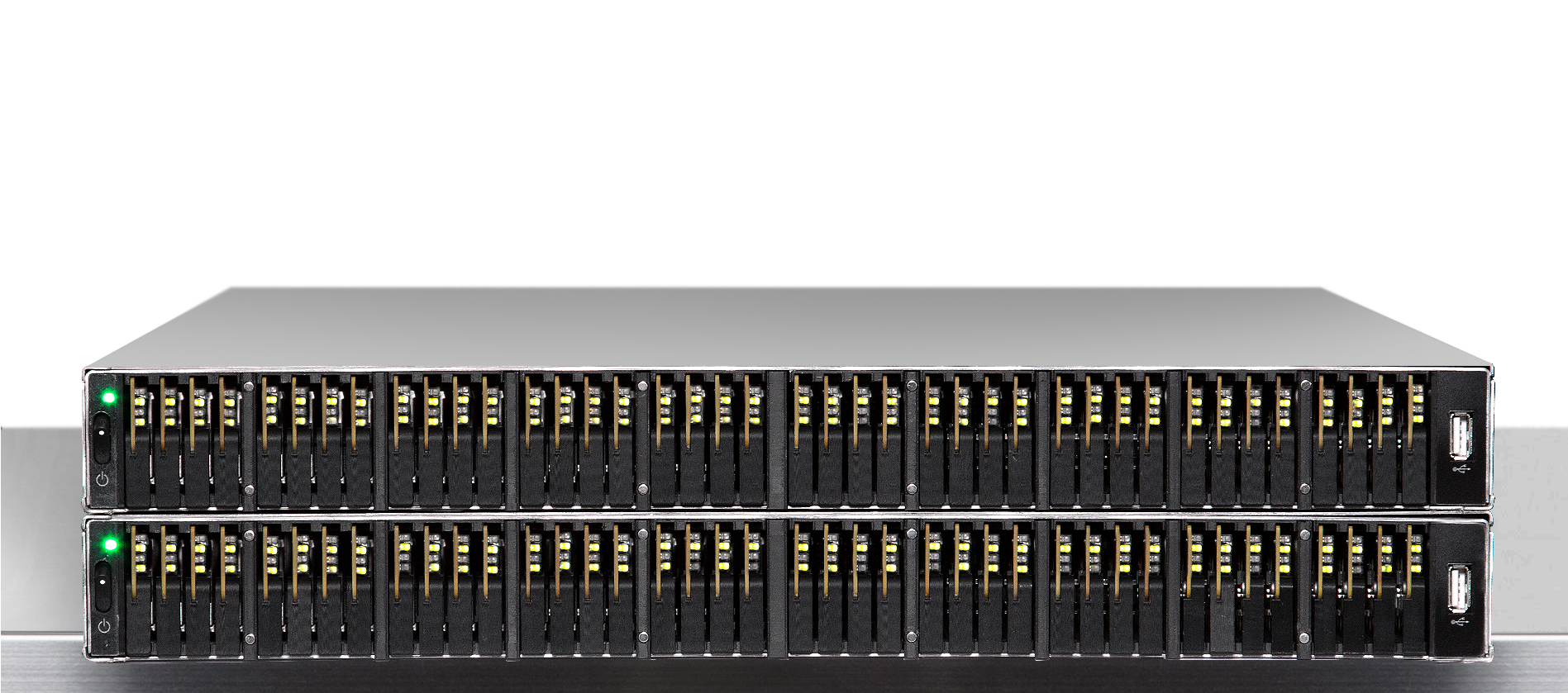

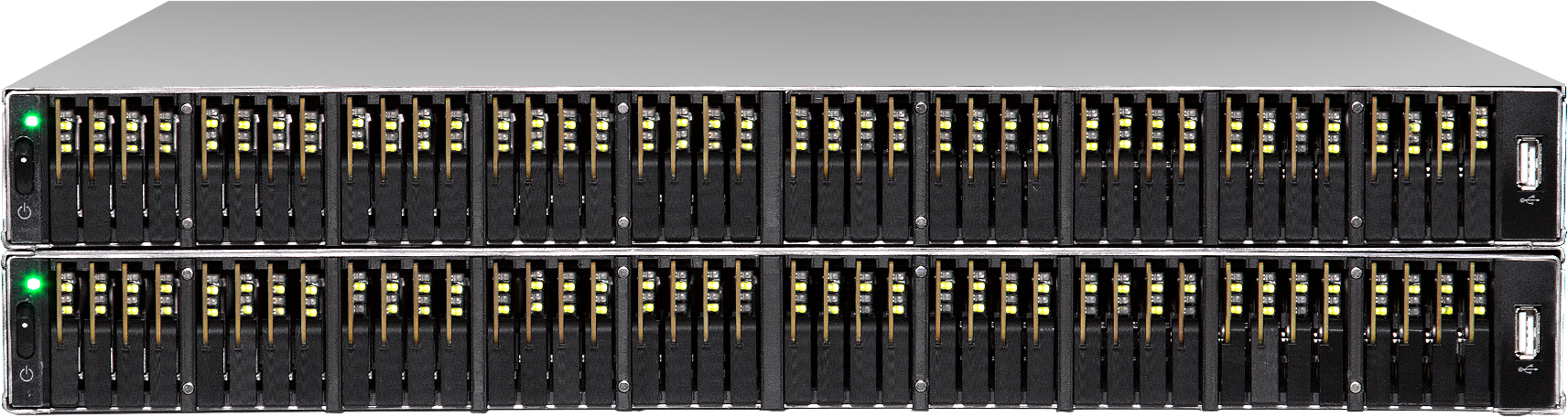

Cybernetics' 6280e All-Flash storage chassis is unparalleled in size to performance output ratio. With a 2U form factor, you will experience reduced storage footprint, heat and electrical cost. Dual controllers provide redundancy and fail-over while all-flash reliability ensures extreme up-time. This solution provides up to 320TB of guaranteed raw storage space with sustained speeds up to 8Gb or GB/s – accelerating all facets of your data center operations.
Windows, Linux, Unix, Netware, and OSx. Certified for VMware, Citrix XEN, and Hyper V.
Encryption At Rest
Easy to manage Encryption At Rest - Without Performance Loss.
Snapshots provide quick access to previous versions of data.
Highly efficient replication requires less bandwidth.
Small Footprint
Only 2U of Rack Space.
Scale-Out Capacity
Easily expand SSD and/or SAS storage using expansion cabinet.
Disk Drive Bays 80
Disk Drive Type SSD
Transfer Rate Up to 8 GB/s
Scalable One (2) Controller Unit + 2 Expansion Units
Performance 1,000,000 IOPS
RAID Levels 0, 1, 5, 6, 10
Controllers 2
Network Interface 2U 80 bay models: Four (4) 1 GbE Data/Admin Ports, Two (2) 12 Gb/s SAS Expansion Ports, Two (2) USB3 Ports

Optional: 10 GbE, 40 GbE, 8/16/32G FC
PowerBoost Upgradeable Controllers
Ideal Choice For Medium To Enterprise Businesses
Up To 240 TB Per Unit
Up To 4 GB/s
Expand Up To 1.6 PB
Up To 700,000 IOPS
ISAN 6140 1U All-Flash
Ideal Choice For Medium To Enterprise Businesses
Up To 160 TB Per Unit
Up To 4 GB/s
Expand Up To 480 TB
Up To 1,000,000 IOPS
ISAN 4520 1U All-Flash HA Pair
Ideal Choice For Medium Businesses
Up to 40 TB Per Unit
Up To 2 GB/s
Expand Up To 120 TB
Up To 300,000 IOPS
