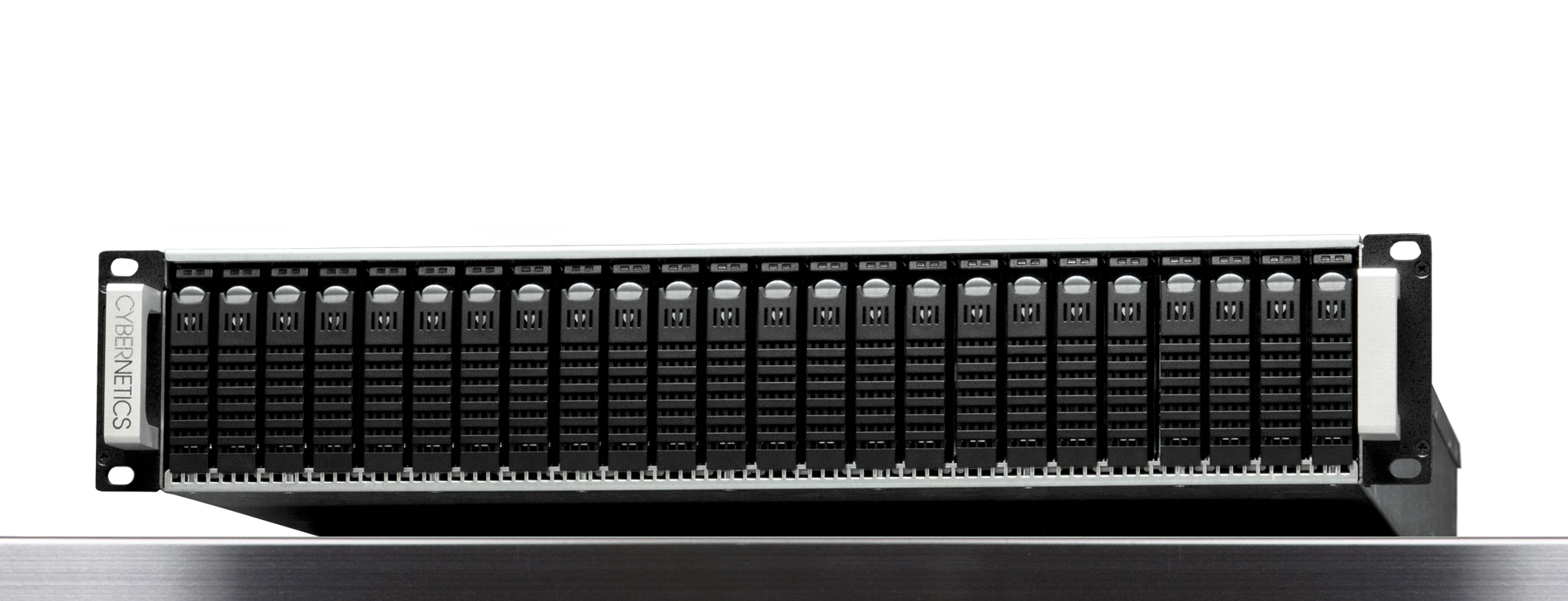

Virtual Tape Library Image
Vast Array of Options For Medium To Enterprise Businesses
Increase performance and capacity as needed with Cybernetics' scale-up, scale-out, architecture that extends ROI for several more years than competing brands.
iSAN v3000 Series Specifications

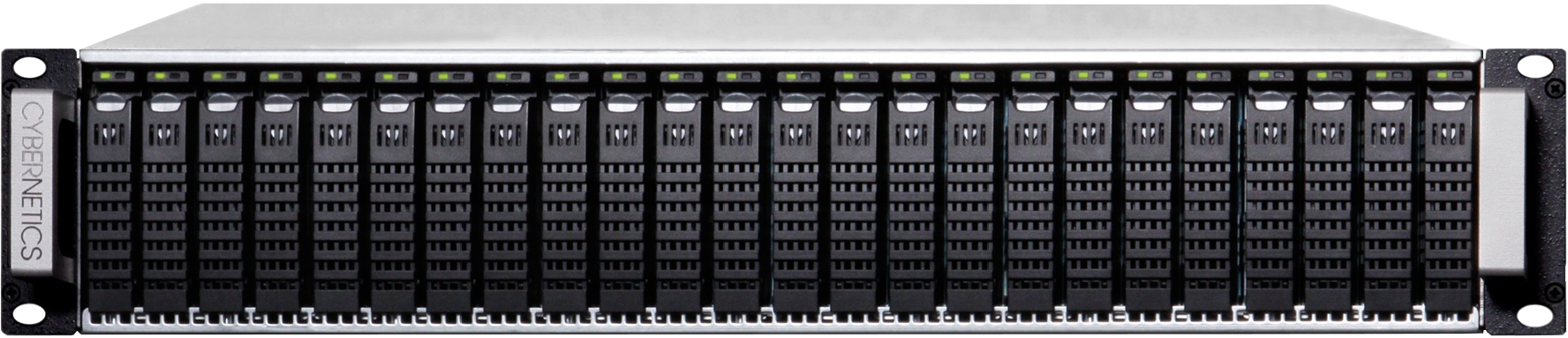

Product Title iSAN v3000S Series
Disk Drive Bays 24
Transfer Rate Up to 7.2 TB/hour
Controllers 1 / 2, Upgradable
Disk Types SATA / SAS / SSD
System Type 2U Rackmount
Multi Platform Support IBM System i,p, Legacy AS/400, Windows, Linux, Unix, HP-UX, Netware, MAC OSX
Scalability 1 Controller Unit + 2 Expansion Units
Raid Levels 0, 5, 6
Network Interface Standard: Two 1 GbE ports, Two 10 GbE ports, Two USB 3.0 ports
Upgradable
Optional: 1/10/25 GbE, 8/16/32G FC

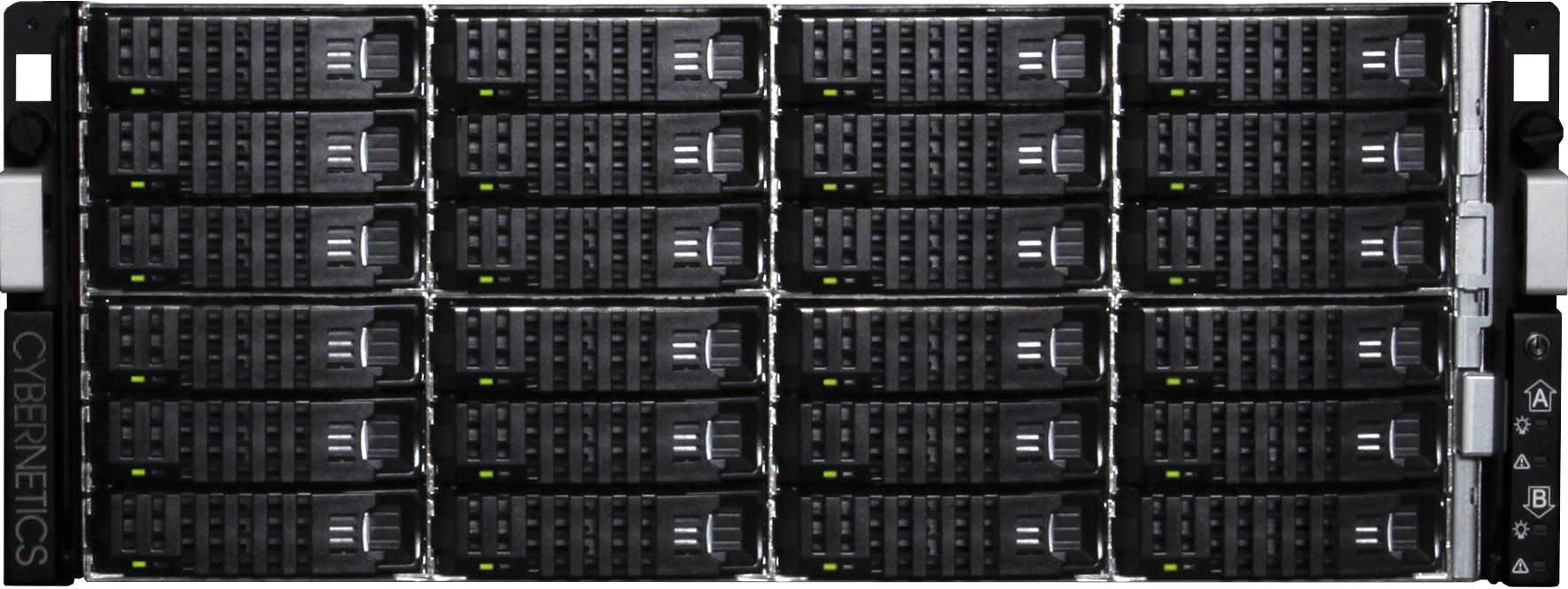

Product Title iSAN v3000T Series
Disk Drive Bays 24
Transfer Rate Up to 7.2 TB/hour
Controllers 1 / 2, Upgradable
Disk Types SATA / SAS / SSD
System Type 4U Rackmount
Multi Platform Support IBM System i,p, Legacy AS/400, Windows, Linux, Unix, HP-UX, Netware, MAC OSX
Scalability 1 Controller Unit + 2 Expansion Units
Raid Levels 0, 5, 6
Network Interface Standard: Two 1 GbE ports, Two USB 3.0 ports, Two USB 2.0 ports
Upgradable
Optional: 1/10/25 GbE, SAS, 8/16/32G FC
Request A Consultation
iSAN v5000 Series Specifications
Product Title iSAN v5000S Series
Disk Drive Bays 24
Transfer Rate Up to 14.4 TB/hour
Controllers 1 / 2, Upgradable
Disk Types SATA / SAS / SSD
System Type 2U Rackmount
Multi Platform Support IBM System i,p, Legacy AS/400, Windows, Linux, Unix, HP-UX, Netware, MAC OSX
Scalability 1 Controller Unit + 4 Expansion Units
Raid Levels 0, 5, 6
Network Interface Standard: Two 1 GbE ports, Two 10 GbE ports, Two USB 3.0 ports
Upgradable
Optional: 1/10/25 GbE, 8/16/32G FC
Product Title iSAN v5000T Series
Disk Drive Bays 24
Transfer Rate Up to 14.4 TB/hour
Controllers 1 / 2, Upgradable
Disk Types SATA / SAS / SSD
System Type 4U Rackmount
Multi Platform Support IBM System i,p, Legacy AS/400, Windows, Linux, Unix, HP-UX, Netware, MAC OSX
Scalability 1 Controller Unit + 4 Expansion Units
Raid Levels 0, 5, 6
Network Interface Standard: Two 1 GbE ports, Two USB 3.0 ports, Two USB 2.0 ports
Upgradable
Optional: 1/10/25 GbE, SAS, 8/16/32G FC
Request A Consultation
iSAN v7000 Series Specifications
Product Title iSAN v7000S Series
Disk Drive Bays 24
Transfer Rate Up to 28.8 TB/hour
Controllers 1 / 2, Upgradable
Disk Types SATA / SAS / SSD
System Type 2U Rackmount
Multi Platform Support IBM System i,p, Legacy AS/400, Windows, Linux, Unix, HP-UX, Netware, MAC OSX
Scalability 1 Controller Unit + 6 Expansion Units
Raid Levels 0, 5, 6
Network Interface Standard: Two 1 GbE ports, Two 10 GbE ports, Two USB 3.0 ports
Upgradable
Optional: 1/10/25 GbE, 8/16/32G FC
Product Title iSAN v7000T Series
Disk Drive Bays 24
Transfer Rate Up to 28.8 TB/hour
Controllers 1 / 2, Upgradable
Disk Types SATA / SAS / SSD
System Type 4U Rackmount
Multi Platform Support IBM System i,p, Legacy AS/400, Windows, Linux, Unix, HP-UX, Netware, MAC OSX
Scalability 1 Controller Unit + 6 Expansion Units
Raid Levels 0, 5, 6
Network Interface Standard: Two 1 GbE ports, Four USB 3.0 ports
Upgradable
Optional: 1/10/25 GbE, SAS, 8/16/32G FC
Request A Consultation
Lightning Fast
Backup And Restore
Powerful - Execute Backups As Fast As Your Systems Can Go
Capable - Back Up Multiple LPARs and Systems Simultaneously
Faster Restores - Restore Backups From Your VTL At Top Speed
Consistent - Backups And Restores Do Not Slow Down With More Data
Off-Site Replication
Fast - Even With Limited Bandwidth
Practical - Fully Restorable Backups At Each Site
Efficient - Minimize Cost and Volume Of Communications
Dependable - Meet Recovery Time Objectives
Powerful Deduplication
High Performance - Fastest Backups With Separate Deduplication Processes
Accessible - Several Weeks Of Backups At Your Fingertips
Effortless - Automatic Backups, No Manual Operation Required
Encrypt Sensitive Data
Encrypted - Data On Your VTL Is 256-bit AES Encrypted To Protect Against Misuse Or Theft
Fail-Proof - Data Stored On Tapes, Even If Encryption Fails
True Security - Encryption And Decryption Both Require A Physical Token and Password
Scale Up - Scale Out
Modular - In-Place Upgrades To Higher Performing Models
Expandable - Add SSD, SAS, Or SATA drives As Needed
Scalable - Add Expansion Cabinets As Needed
Flexible Connectivity Options
Standards - iSCSI - SCSI
Storage - SATA - SAS - SSD
Network - Ethernet - Fiber Channel
& Many More
