Cybernetics Storage and Backup Solutions

SAN Network Storage

miSAN® D Series

Scalable – 150,000 IOPS – 500 MB/s

iSCSI Disk Based Storage

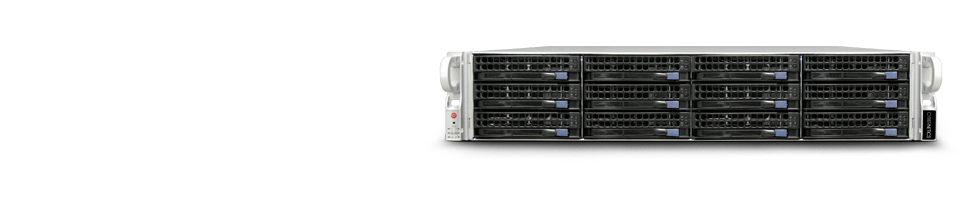

The miSAN® D Series 12 disk bay model offers 12 disk bays of SATA or SAS disk drives in a 2U SAN network storage enclosure. Once installed on your Ethernet network, use the intuitive management interface to allocate capacity across heterogeneous servers and workstations, where and when it's needed.

Powered by our exclusive SANDR 5.0 performance engine, miSAN® D Series delivers transfer rates of up to 500 MB/s and can sustain 150,000 IOPS. It also features layers of data protection, including snapshot backup; portable disk backup; tape backup; encryption, deduplicated, WAN replication; and high availability with no single point of failure – and all without third party backup software.

The combination of savings from SANDR Technology and storage virtualization make miSAN® D Series SAN network storage solutions an outstanding choice for organizations that expect enterprise class performance at an attractive price-point.

Live Storage
  • Fast transfer rates – 500 MB/s throughput.
  • Exceptional performance – Up to 150,000 IOPS.
  • Scalable – Supports up to 8 modules in a single SAN for 768 TB capacity.
  • Compatible – Windows, Linux, Unix, Netware Applications, Virtual Machines, OS X, Hyper V, Virtual Iron, VMware, XEN, SQL, Exchange, Oracle and more.
  • iSCSI SAN – The most efficient kind of storage: block level SAN network storage.
  • Dynamic LUN Provisioning – Add capacity to any virtual disk, server, or application on the fly.
  • Dynamic Snapshot Provisioning – Expand snapshot space on demand.
  • Connectivity – Five GbE ports (Optional configurations available).

Layered Data Protection
  • Snapshots Backup – Mountable points for recovery or rollback.
  • Disk Backup – Copy disk volumes to portable USB and eSATA hard disk.
  • Tape Backup – Fast image backup to tape without backup server or software.
  • WAN Replication – Automated, deduplicated and encrypted remote disaster recovery backup.
  • High Availability – Hardware level mirroring and automatic failover with no single point of failure.

Long-Term Archive
  • Integrated – Backup to portable disk or tape without additional software.
  • Serverless – Backup traffic never hits the network, so there is no speed impact.
  • Portable Disk – Backup to portable disk creates mountable volumes.
  • Removeable Tape – Durable, 20 Year, point in time data archives.
Citrix and VMware Ready
Specifications
Hot Swap Drive Bays 12
Disk Drives SATA, SAS
Connectivity Standard: 4 GbE and 2 Mini-SAS device/host ports
(+ iSCSI management port)
Optional: 4 additional GbE ports, or two 10-gigabit Ethernet (SFP+)
Scalable 1 controller unit plus 7 expansion units
Transfer Rate Up to 500 MB/s
RAID Levels 0, 1, 10, 5, 6, 60, 50 + Hot Spare
Physical Dimensions 2U Rackmount
26.2" x 16.9" x 3.5"
Please allow 3" for cable clearance
Operating System
Compatibility
AIX 5.3 and higher
HPUX 11.11 and higher
Linux
Netware 6.5 SP6 +
MAC OS X (with Initiator)
Solaris 10.X and higher
Windows 7, 2000, 2003, XP and higher
Special Applications
Compatibility
VMware ESX Server 3.5, 4.x, 5.x
vSphere 4, 5
Xen
HyperV
SQL Database
Oracle Database
Microsoft Exchange
iSCSI Initiator
Compatibility
Microsoft iSCSI Software Initiator
Linux Open-iSCSI Initiator
Novell iSCSI Initiator for Netware
